Justo Slide System | XL-C 7215

XL-C 7215 Justo SLIDE is designed for multiple glass sliding panel slides over each other to cover the wide opening. The system contains a pulley and toothed belt to close or open the door panel progressively way with low effort and it has Silent running rollers with POM Wheel highly resistant to abrasion JS 7215 system has a weight carrying capacity of upto 120Kg.

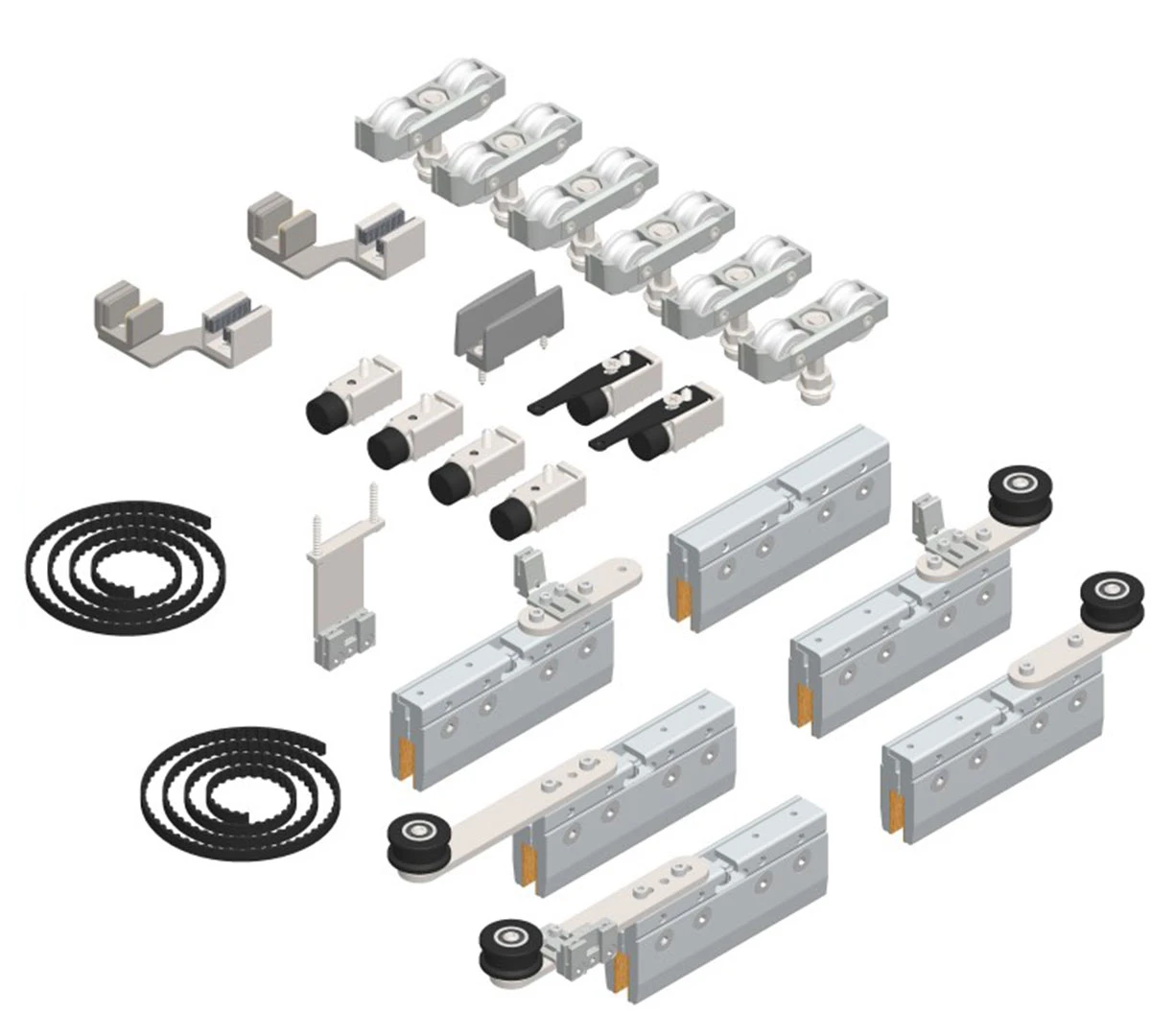

The JS 120 kg telescopic glass package contains 3 sets of glass clamps for holding the sliding panel, 3 sets of paired rollers, pair of pulleys, a toothed belt & clamps, a floor guide and a 10Mtr track. The product is easy and flexible to mount, and it comes with a silent and easy operating system.

See More
MRP: ₹50,865.00
My Queries

Product Details

XL-C 7215 Justo SLIDE is designed for multiple glass sliding panel slides over each other to cover the wide opening. The system contains a pulley and toothed belt to close or open the door panel progressively way with low effort and it has Silent running rollers with POM Wheel highly resistant to abrasion JS 7215 system has a weight carrying capacity of upto 120Kg. The JS 120 kg telescopic glass package contains 3 sets of glass clamps for holding the sliding panel, 3 sets of paired rollers, pair of pulleys, a toothed belt & clamps, a floor guide and a 10Mtr track. The product is easy and flexible to mount, and it comes with a silent and easy operating system. It can be fixed to either the wall or the ceiling. For the trade, the product offers a complete solution for multiple sliding door panels that can cover a wide area. Additionally, there is an option to have a soft opening/soft closing. For the installer, the product offers quick installation and has a height adjustment of up to ?2mm. It is also suitable for both wall or ceiling mounts and does not require any glass cutout. The product has a high level of quality that suits the customer's needs, and it is modular and suitable for both residential and commercial use. For the user, the product offers high levels of quality and durability. It is also easy to handle.
Specifications -
  • System Height : 2700mm(Max.)
  • Sliding Panel width: 610mm (Min.) - 1500mm(Max.)
  • Sliding Panel thick : 27mm(Min.) - 40mm (Max.)
  • Sliding panel weight : 120kg(Max.)
  • Finish : Aluminium sliver
Features +
  • Quick & Easy installation.
  • System without glass cutout.
  • Enchanced Aesthetics.
  • Option of having soft closing and soft opening unit.
Benefits +
  • High level in quality.
  • Reliable operation.
  • Tested products.

Product Downloads

🔍
Document Name
Document type
File Size
View Document
Brochure Cum Price List
PDF
13.96 MB
×
