Justo Slide System | XL 7207

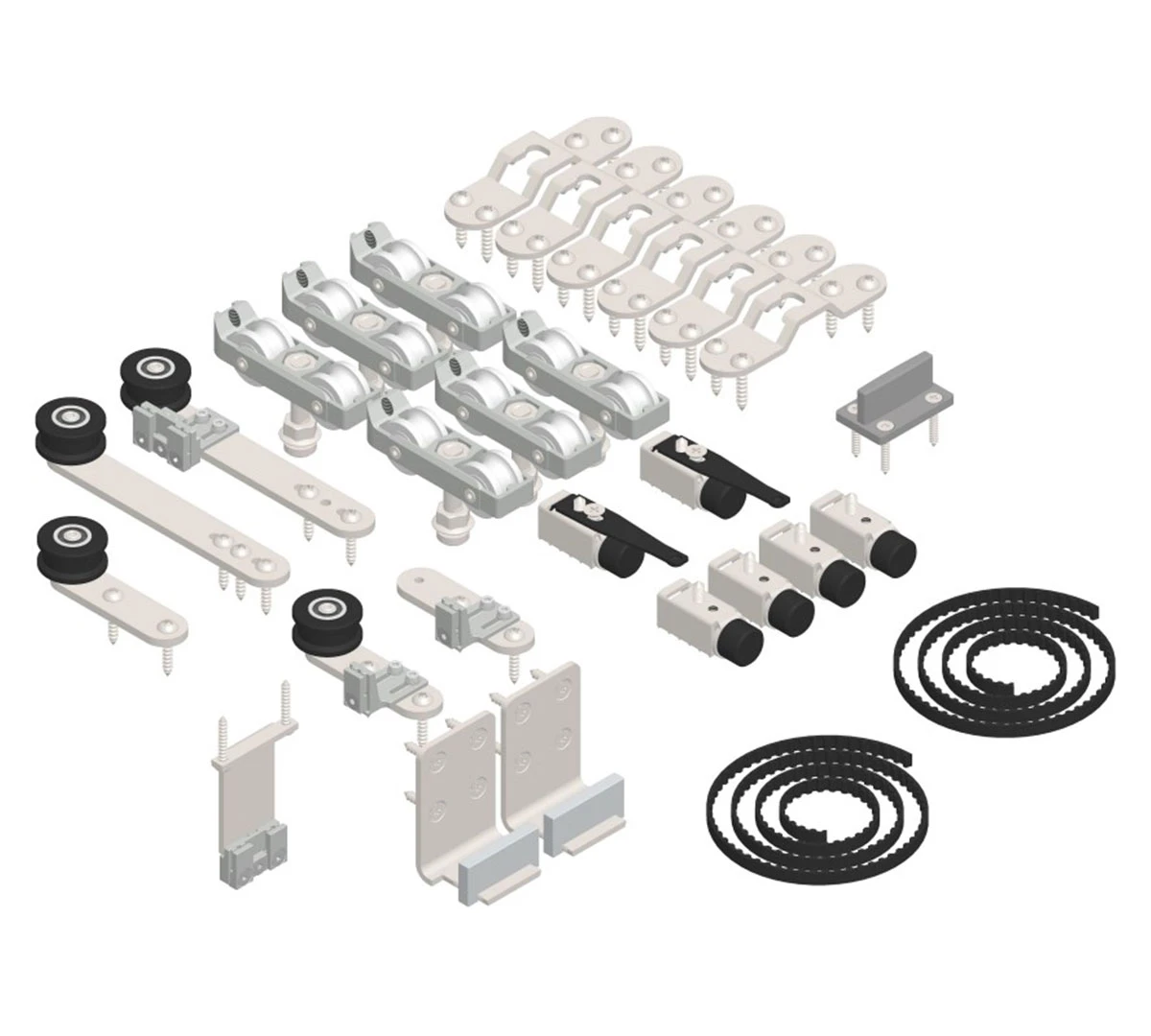

XL-C 7207 Justo SLIDE are designed for wooden multiple sliding panel slides over each other to cover the wide opening. The system contains a pulley and toothed belt to operate the door panel simultaneously and it has Silent running rollers with POM Wheel highly resistant to abrasion JS 7207 system has a weight carrying capacity of upto 120Kg and The JS 120 kg WD package contains 3 set of T side assembly Brackets screwed on wooden panel, 3 sets of paired rollers, floor guide, pulley with stopper, toothed belt.

The product is easy and flexible to mount and can be fixed to either the wall or ceiling. The system operates silently and smoothly, making it easy to use.

See More
MRP: ₹30,900.00
My Queries

Product Details

XL-C 7207 Justo SLIDE are designed for wooden multiple sliding panel slides over each other to cover the wide opening. The system contains a pulley and toothed belt to operate the door panel simultaneously and it has Silent running rollers with POM Wheel highly resistant to abrasion JS 7207 system has a weight carrying capacity of upto 120Kg and The JS 120 kg WD package contains 3 set of T side assembly Brackets screwed on wooden panel, 3 sets of paired rollers, floor guide, pulley with stopper, toothed belt. The product is easy and flexible to mount and can be fixed to either the wall or ceiling. The system operates silently and smoothly, making it easy to use. For trade professionals, this system offers a complete solution for bi-parting synchronized sliding doors, including the option of having a soft opening or soft closing features. For installers, this system provides quick installation and height adjustment of up to ? 2mm, and it is suitable for both wall and ceiling mounts. The high level of quality of this system meets the needs of customers, and it is modular and suitable for both residential and commercial use. Finally, for the end-user, this system offers a high level of quality and durability and is easy to handle, making it a convenient option for bi-parting synchronized sliding door systems.
Specifications -
  • System Height : 2700mm(Max.)
  • Sliding Panel width: 600mm (Min.) - 1500mm(Max.)
  • Sliding Panel thick : 27mm(Min.) - 40mm (Max.)
  • Sliding panel weight : 120kg(Max.)
  • Finish : Aluminium sliver
Features +
  • Quick & Easy installation.
  • Enchanced Aesthetics.
  • Option of having soft closing and soft opening unit.
Benefits +
  • High level in quality.
  • Reliable operation.
  • Tested products.
